Overview
YIPU Model No. FDB- TX3 – 2 4 A can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 2 4 users requirements. It can help splicing, splitting, storage and management with suitable space.

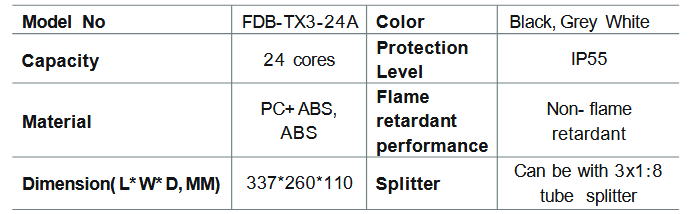

Technical Index

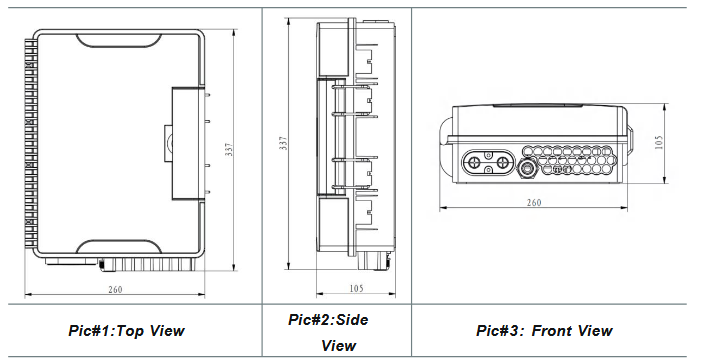

The dimension diagram:(mm)
Features
3 . 1 The body is made of high quality engineering plastic with good strength;

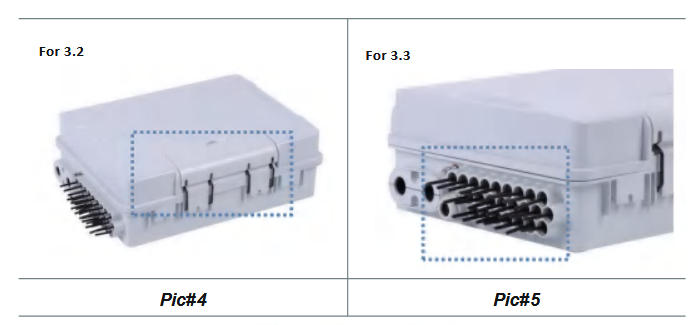

3 . 2 With safe special- shaped lock, the box can be opened easily and has good water-
proof performance, suitable for indoor and outdoor natural environments ( Pic# 4 for details) ;
3.3 With the independent rubber sealing plug for drop cable,better waterproof performance
( Pic# 5 for details) ;
3. 4 With double- page design, the box can be installed and maintained easily, the fusion
and termination are completely separated( Pic# 6 for details) ;
Pict #64.1 Plastic bag size: 500*410mm
4.2 Inner box with single corrugated size: 355*270*115 mm
4.3 Carton with double corrugated size: 63*36.5*54 CM ( 10PCS/Box)
4.4 Weight per carton：23.8 KG
